8PRO single Borosilicate glass cup

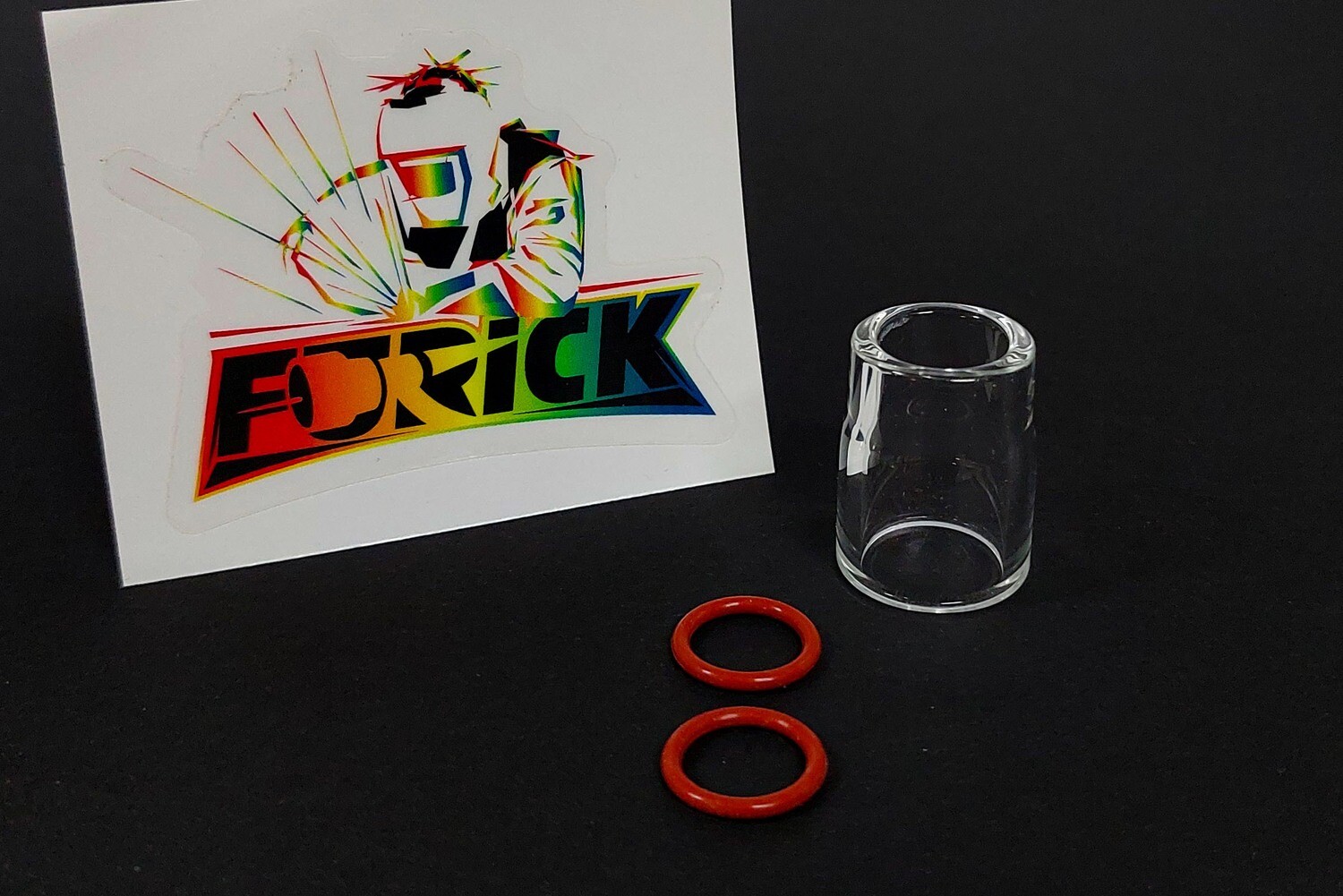

Comes with 1 single #8 PRO cup and 2 mounting o-rings.

The 8PRO cup is an AC/DC polarity consumable with a 200amp rating and has an inner diameter of 12.5mm. It is commonly used for most mild steel and stainless steel applications where good gas coverage is wanted and arc stability is critical.

The #8 size cups are a great all around size for most industrial and hobbyist applications. It will require 15-20 CFH of argon flow. You can run 3/32-2.4mm or 1/16 – 1.6 mm tungsten with this cup. Please do not “walk the Cup” with any of the Furick cup line of Borosilicate glass cups.

MOUNTING

For 9/20 torch - Need the gas lens (45V43, 45V44 or 45V45)

45V44 2.4mm https://mmytig.com/Gas-lens-2-4mm-for-9-20-torches...

For 17-18-26 torch - Need stubby gas lens (1617GL, 33217GL or 12517GL)

33217GL 2.4mm https://mmytig.com/Gas-lens-2-4mm-for-17-18-26-tor...

*Note: With the 17,18 and 26 torches you will need the stubby collets and the insulators to match.

Stubby collet 2.4mm https://mmytig.com/Wedge-collet-stubby-2-4mm-for-1...

Insulator for NON-CK https://mmytig.com/Insulator-for-NON-CK-17-18-26-t...

Or the 17kit https://mmytig.com/Torch-adapter-kit-2-4mm-for-17-18-26-torches-p467697518
